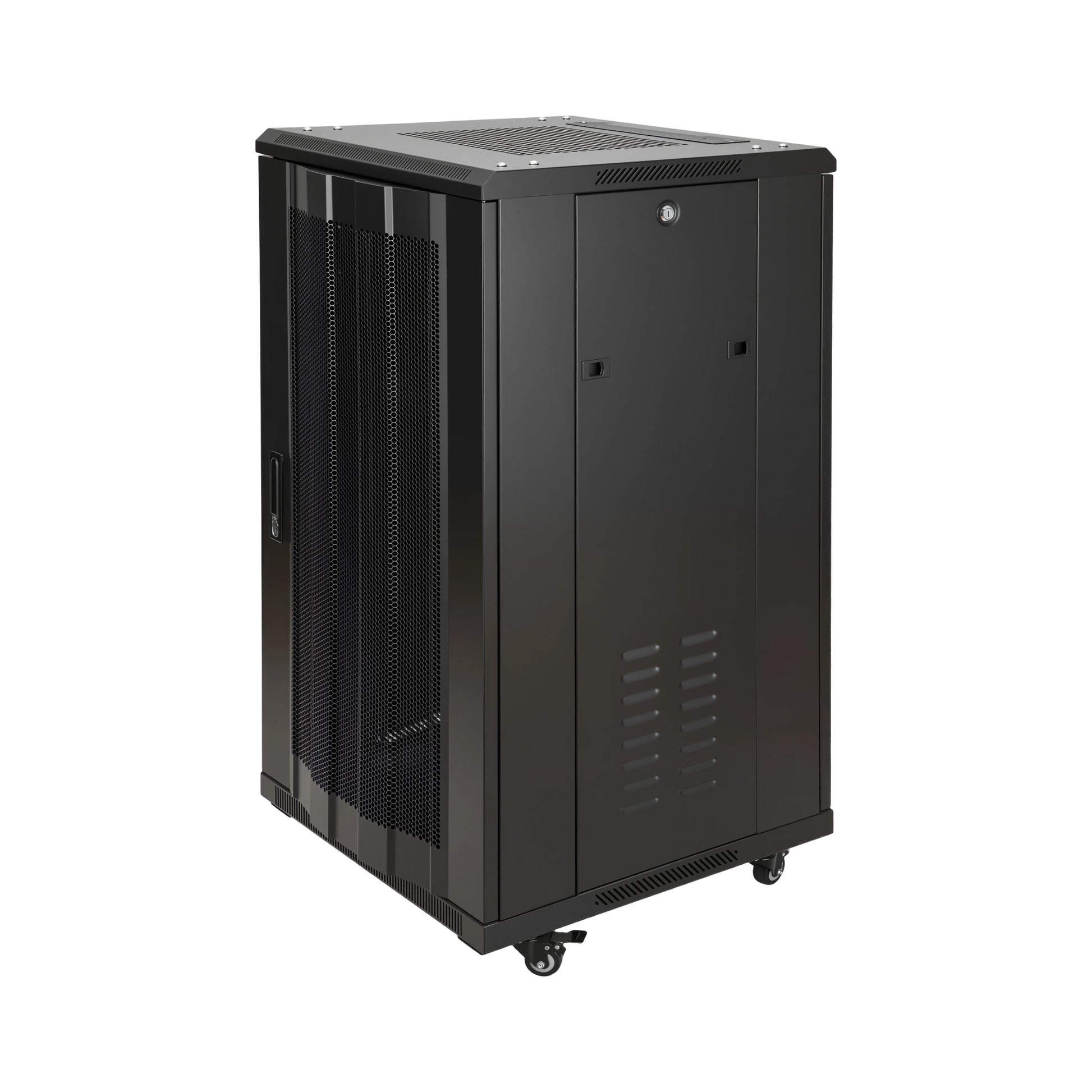

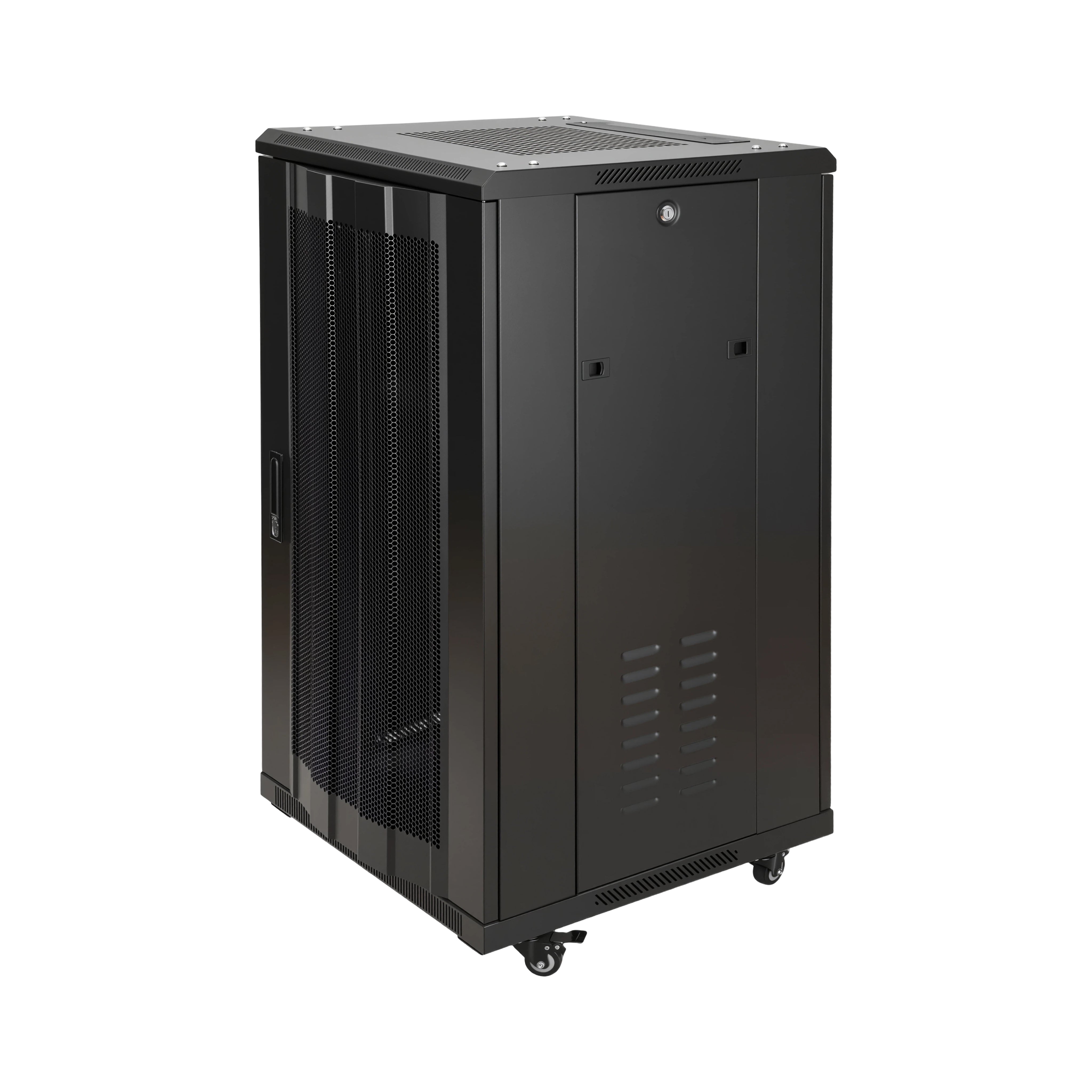

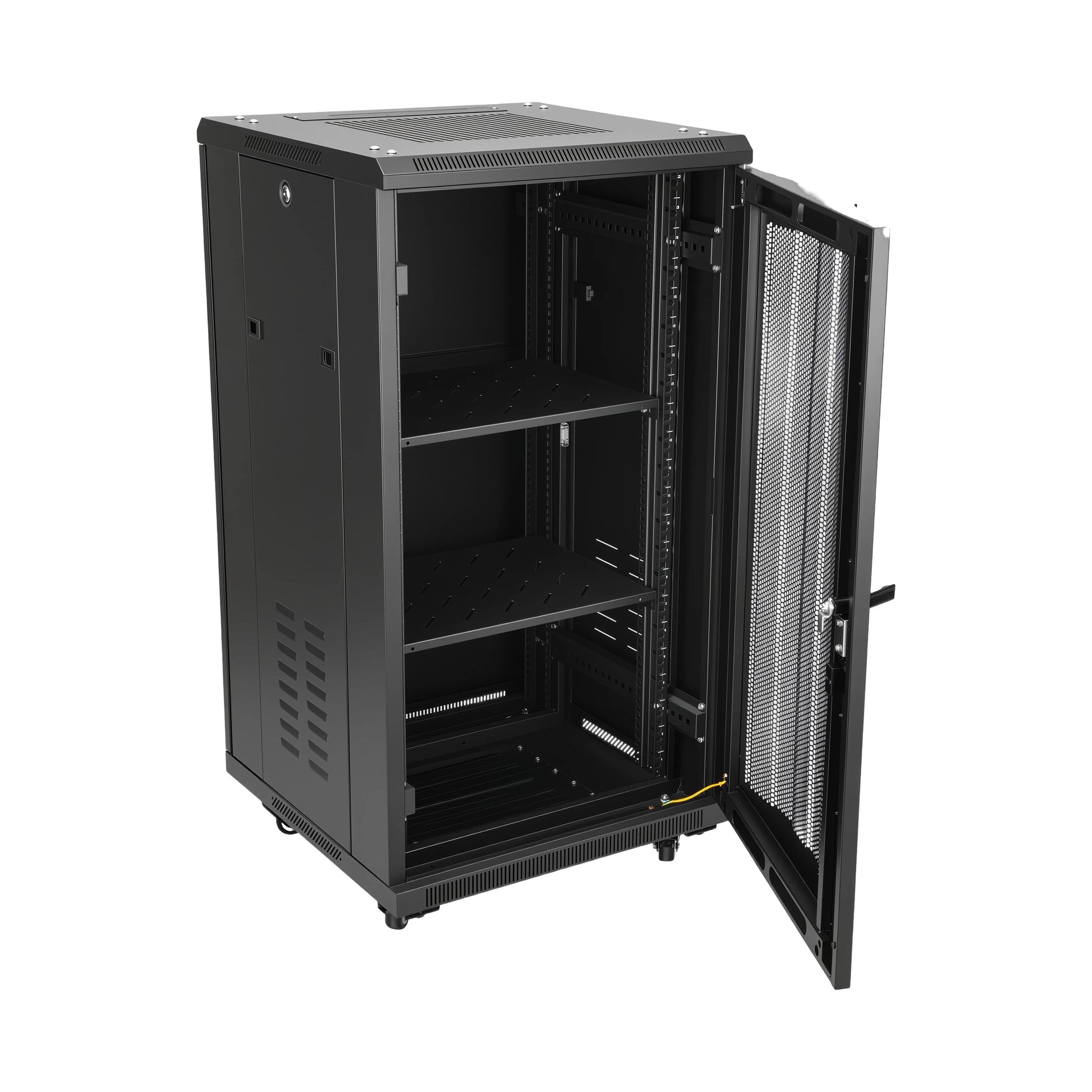

Curved 22RU Floor Standing Rack Cabinet 600W 1000D 1166H

Overview
A 22RU (22U) floor standing rack cabinet fits the sites that have outgrown a wall cabinet but do not need a full-height enclosure. It stands 1166mm tall and 1000mm deep, with a 500kg load rating for fully populated installations. CURVED 22RU Floor Standing Rack Cabinet 1000mm(D) x 1166mm(H) x 600mm(W)

The Best World 22RU 600mm wide floor standing rack cabinet is a complete solution for securely housing critical IT, networking, and industrial equipment. Engineered for stability, airflow, and ease of use, this all-in-one package combines robust construction, advanced cooling management, and enhanced security to deliver superior performance in demanding environments.

Ideal for
IT, telecommunications, audio-visual, and industrial applications, it provides a versatile and professional foundation for your rack-mounted systems.

Cabinet Design & Construction
Built for durability and security, the cabinet features:

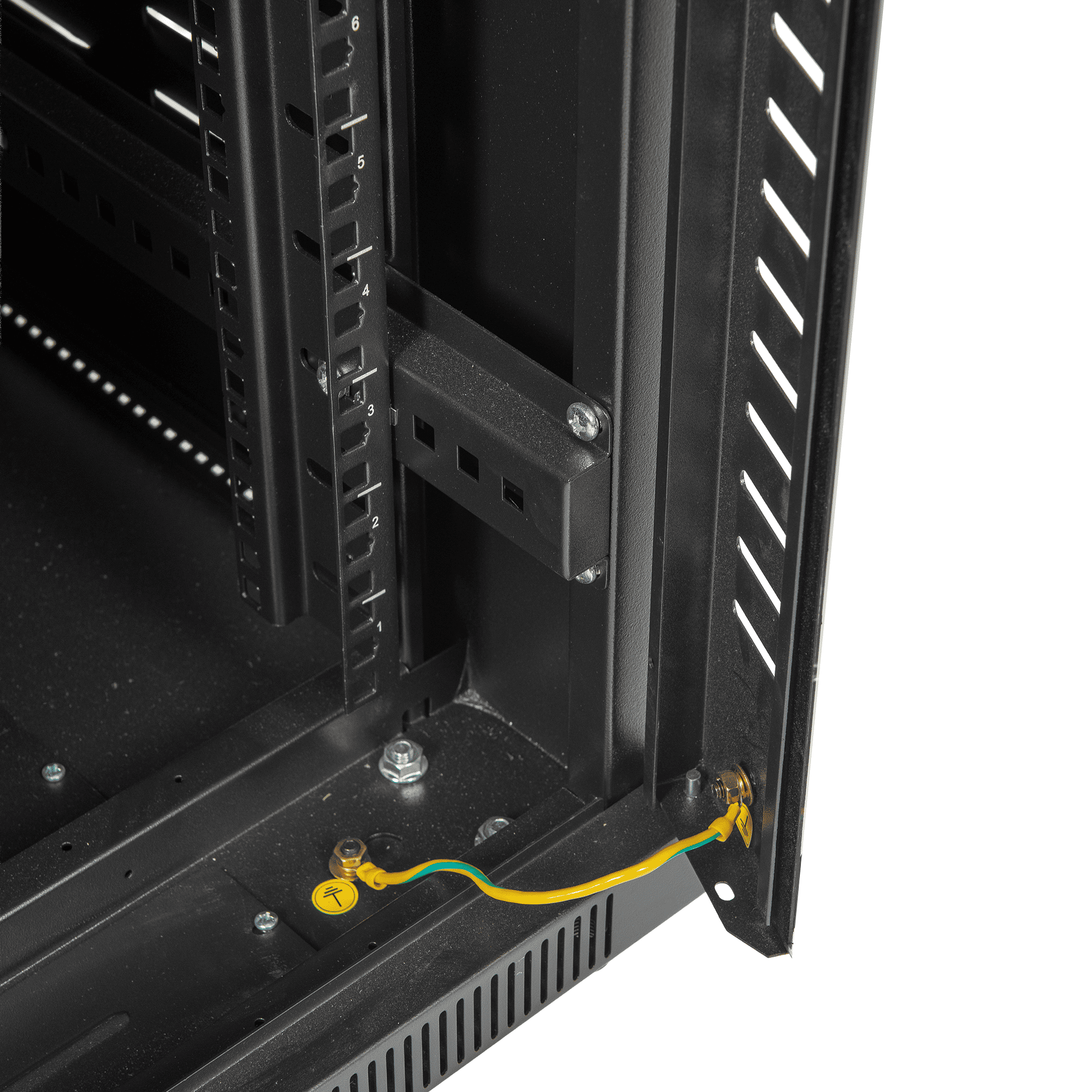

• S-shape adjustable vertical uprights
• Lockable Curved mesh front door

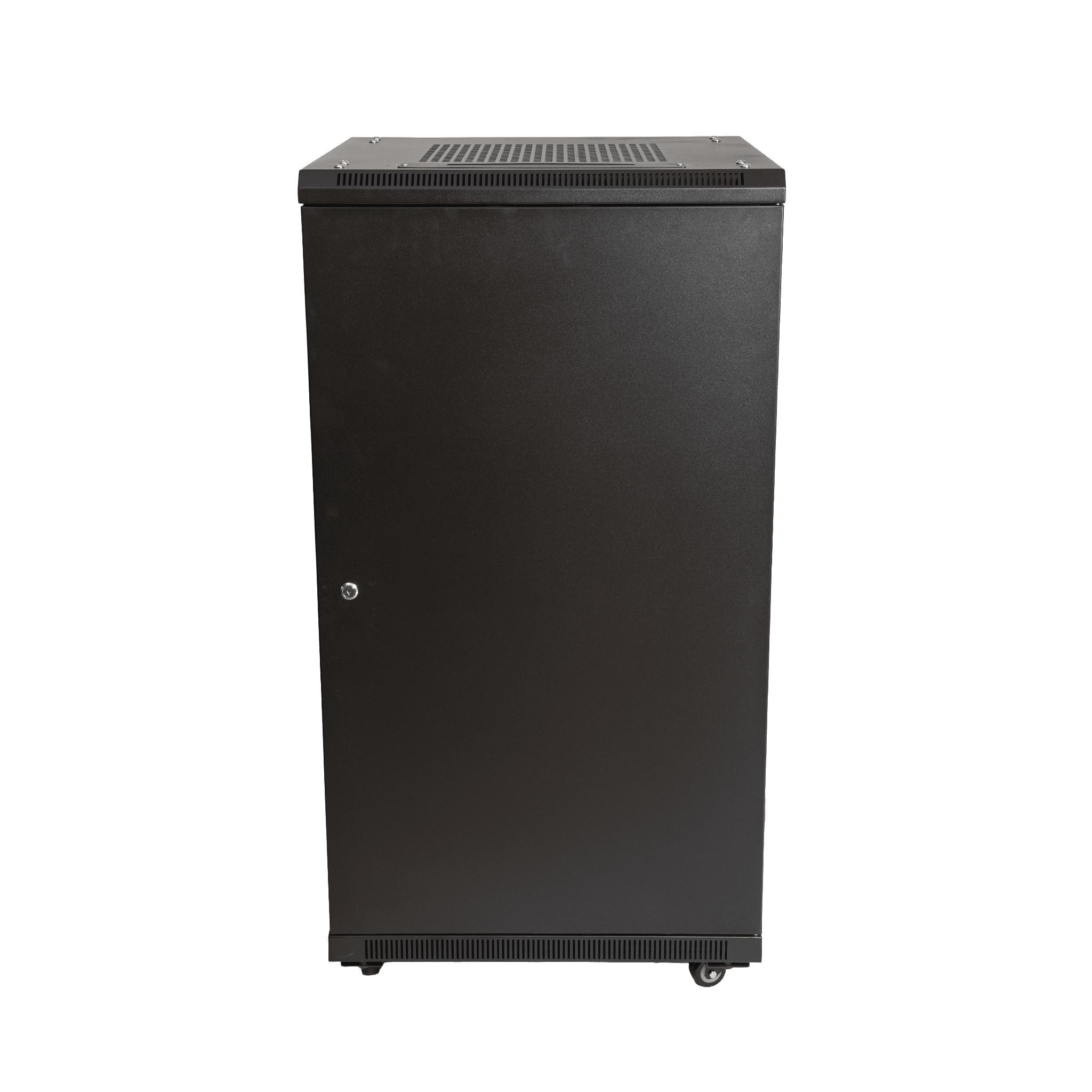

• Locable solid metal rear door
• Ventilated panels to support continuous airflow
• Secure locking mechanisms on front and side panels
• Heavy-duty welded steel frame for strength and stability

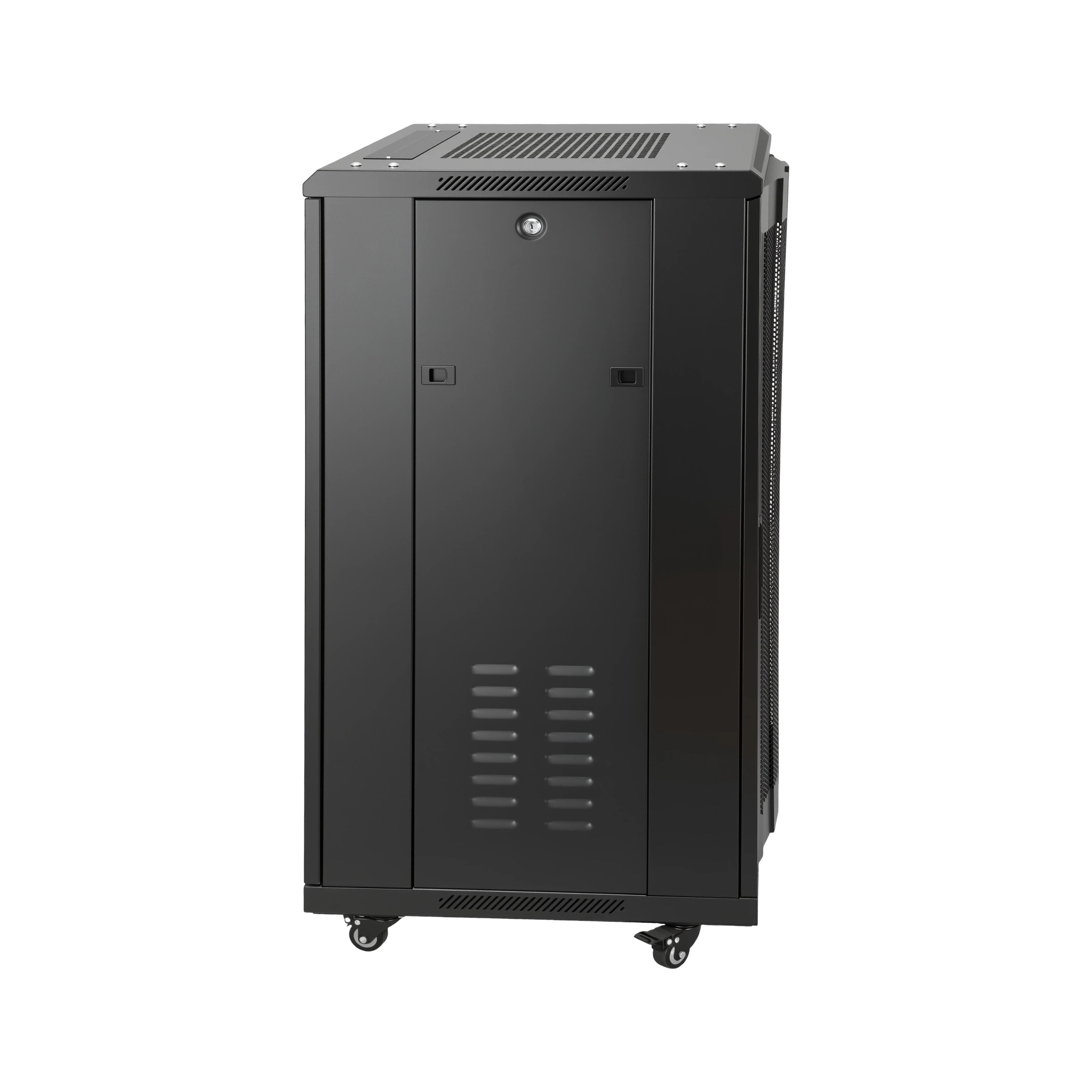

• Removable side panels for easy access and reconfiguration

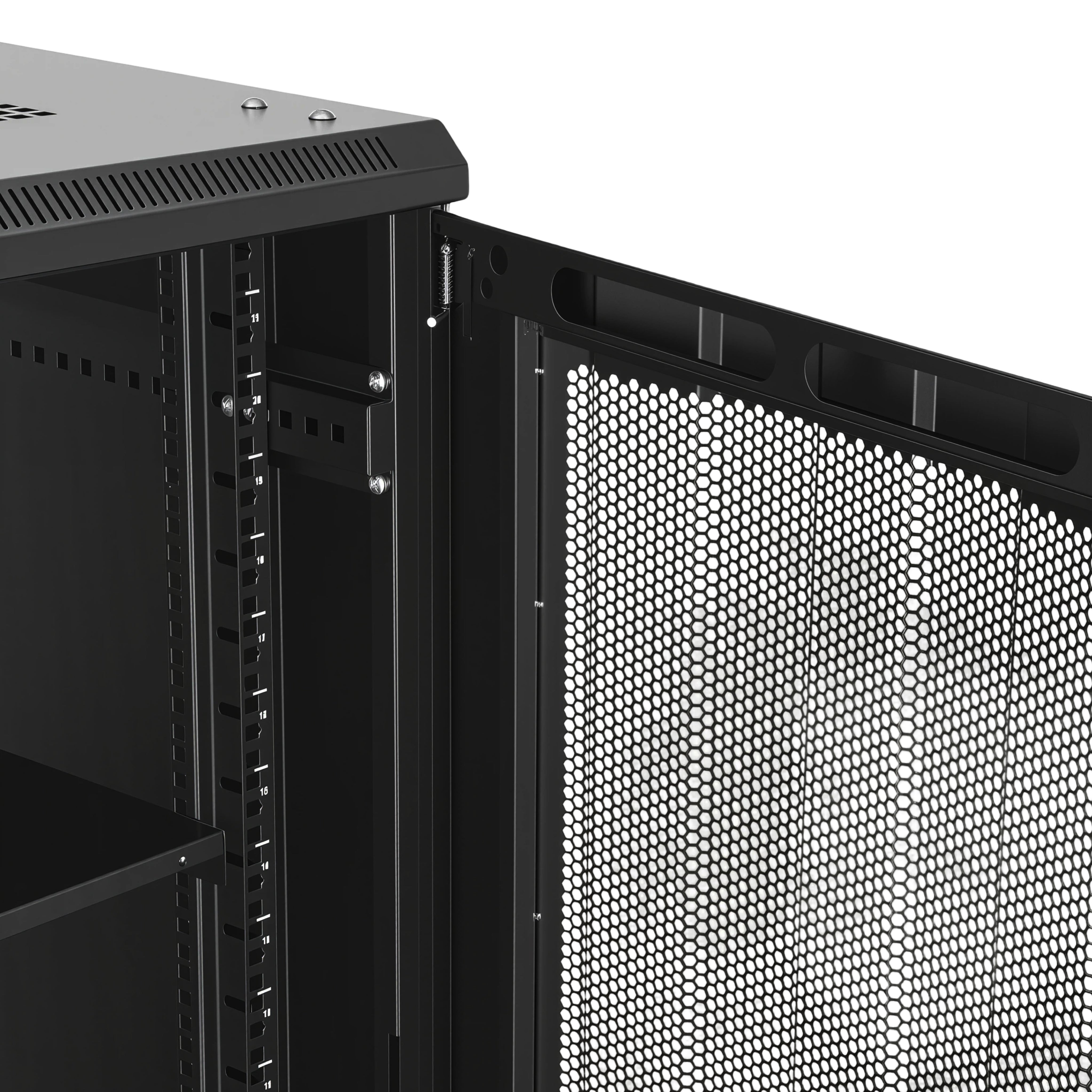

The cabinet also includes pre-cut cable entry points, fully adjustable 19-inch mounting rails (front and rear), and white RU height markings, making installation and maintenance clean, organised, and efficient. Its modern black powder-coated finish complements both office and technical environments.

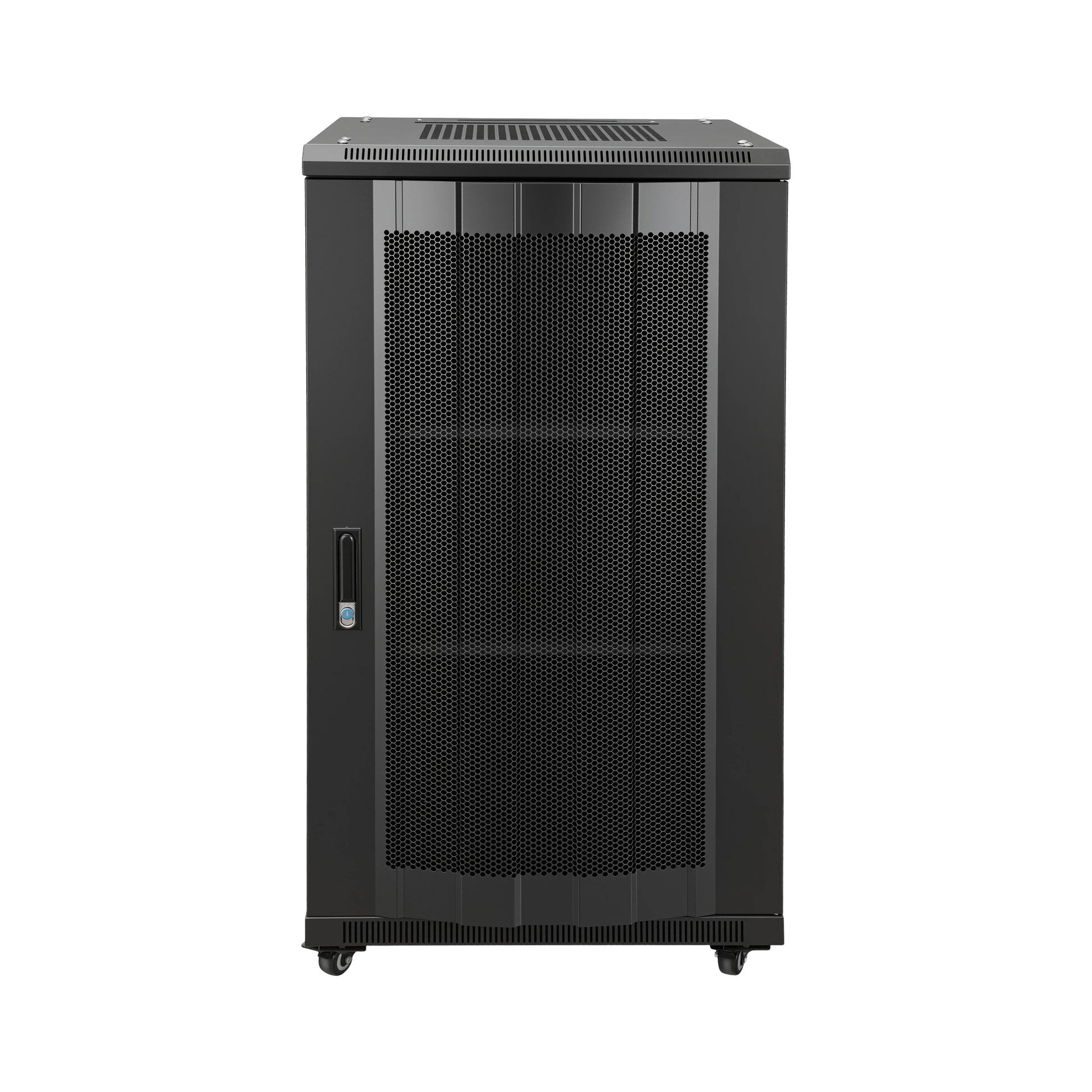

Enhanced Airflow & Security with Curved Mesh Door
The included Curved Mesh Door is designed exclusively for Best World 22RU 600mm wide cabinets, adding a sleek, modern aesthetic while maximising airflow.

Curved Mesh Design -
Optimised to allow maximum ventilation to installed equipment, preventing overheating

Heavy-Duty Steel Construction -
Durable, secure, and professional in appearance

Flexible Mounting -
Can be installed on the front or rear of the cabinet

Exclusive Compatibility -
Perfectly fits Best World 22RU 600mm cabinets

2-Year Warranty -
Provides peace of mind and long-term reliability

This door is ideal for IT, networking, security systems, and other rack-mounted equipment where airflow and accessibility are critical.

Intelligent Cooling with Digital Temperature Fan Controller
The included 1RU Digital Temperature Fan Controller ensures optimal cooling and energy efficiency.

Programmable Control -
Set precise temperature thresholds to activate fans only when needed

Energy-Efficient Operation -
Fans automatically switch off once temperature drops below the set level

Intelligent Tolerance Function -
Prevents constant on/off cycling, reducing mechanical wear and prolonging equipment life

Enhanced Equipment Protection -
Maintains consistent airflow and optimal operating temperatures for sensitive network hardware

Compatible with all universal 19-inch rack-mounted equipment, this controller integrates seamlessly with the cabinet, providing stable and efficient environmental management.

Package Includes
Best World 22RU Floor Standing Rack Cabinet

Curved Mesh Door (front or rear mounting)

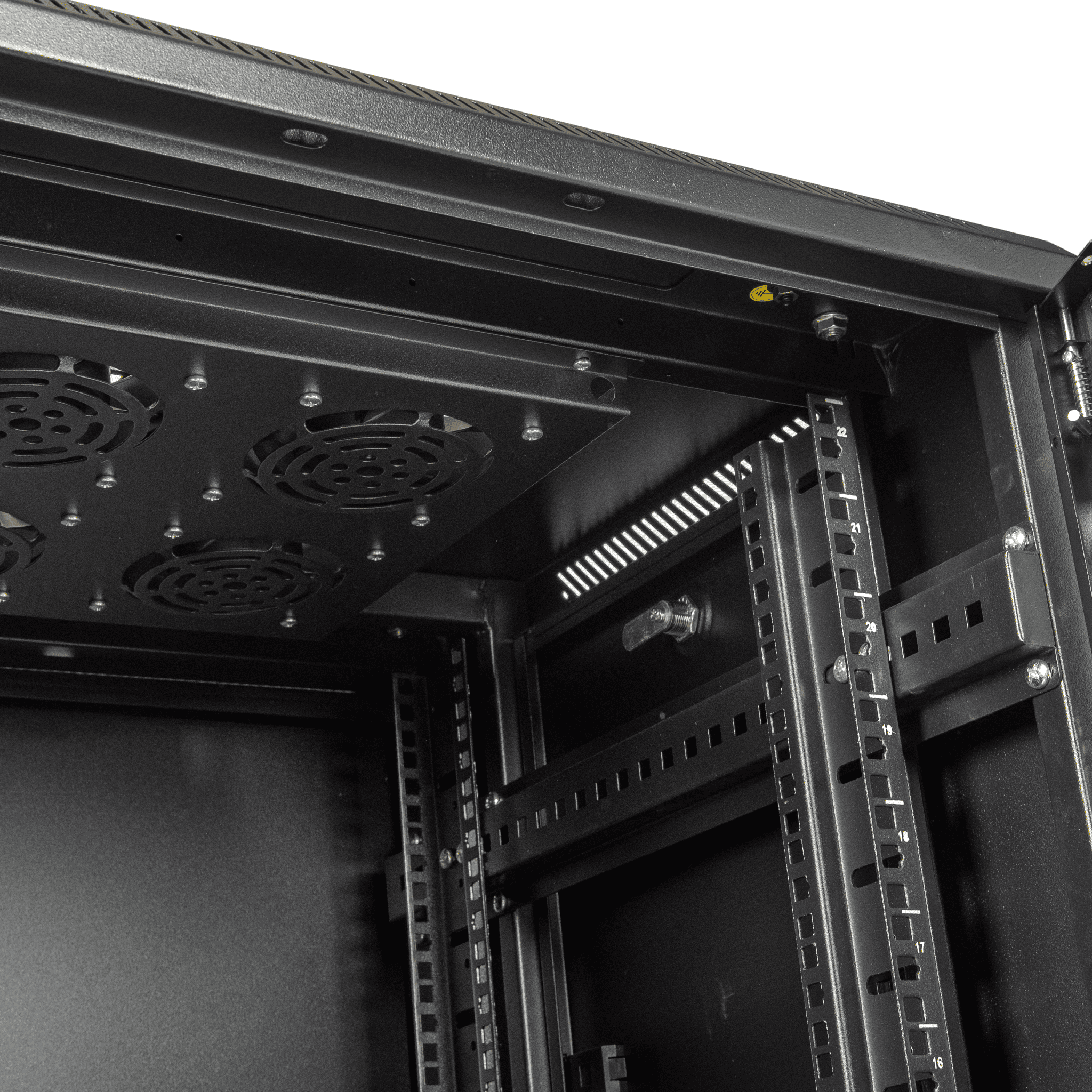

Top-mounted fan tray with four cooling fans

1RU Digital Temperature Fan Controller

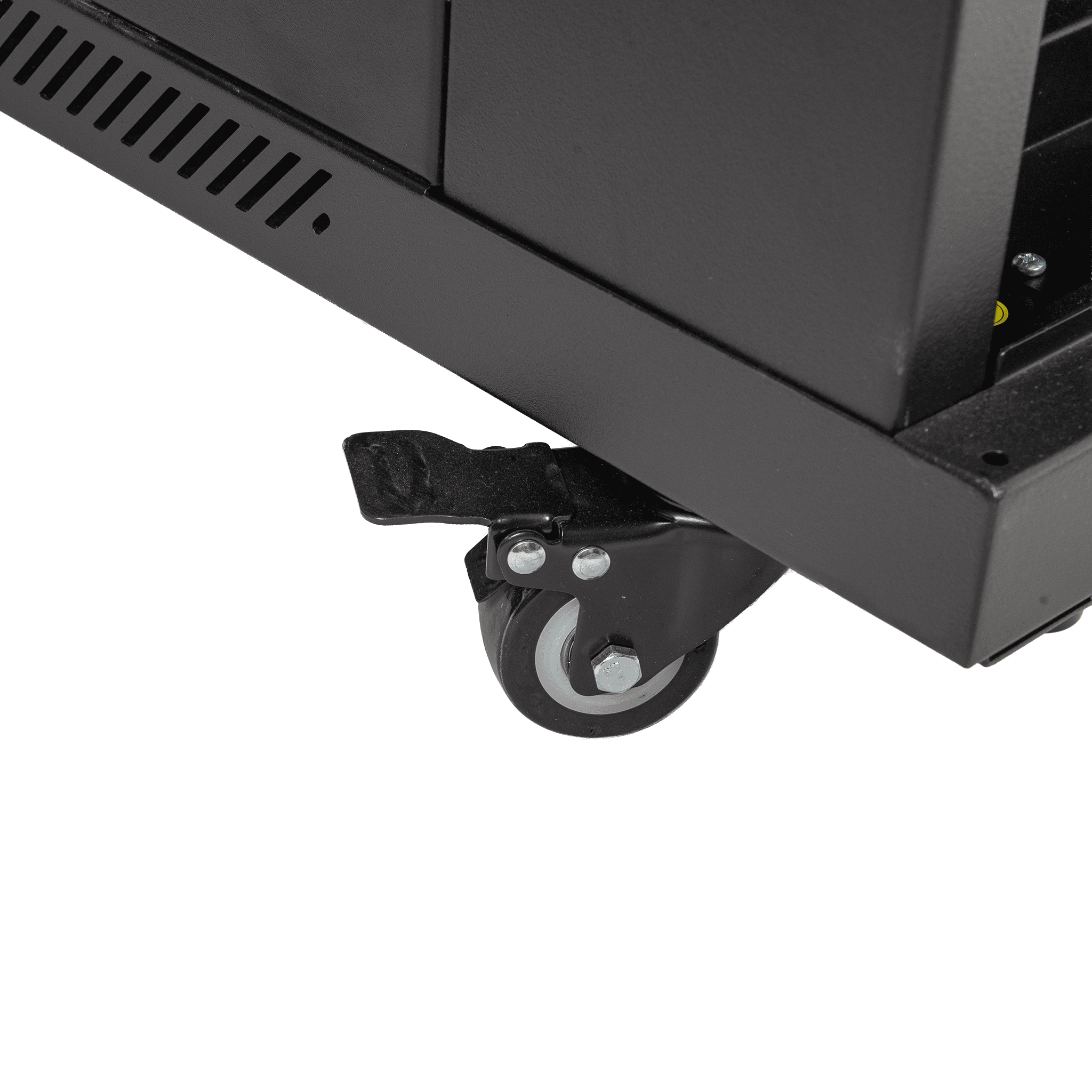

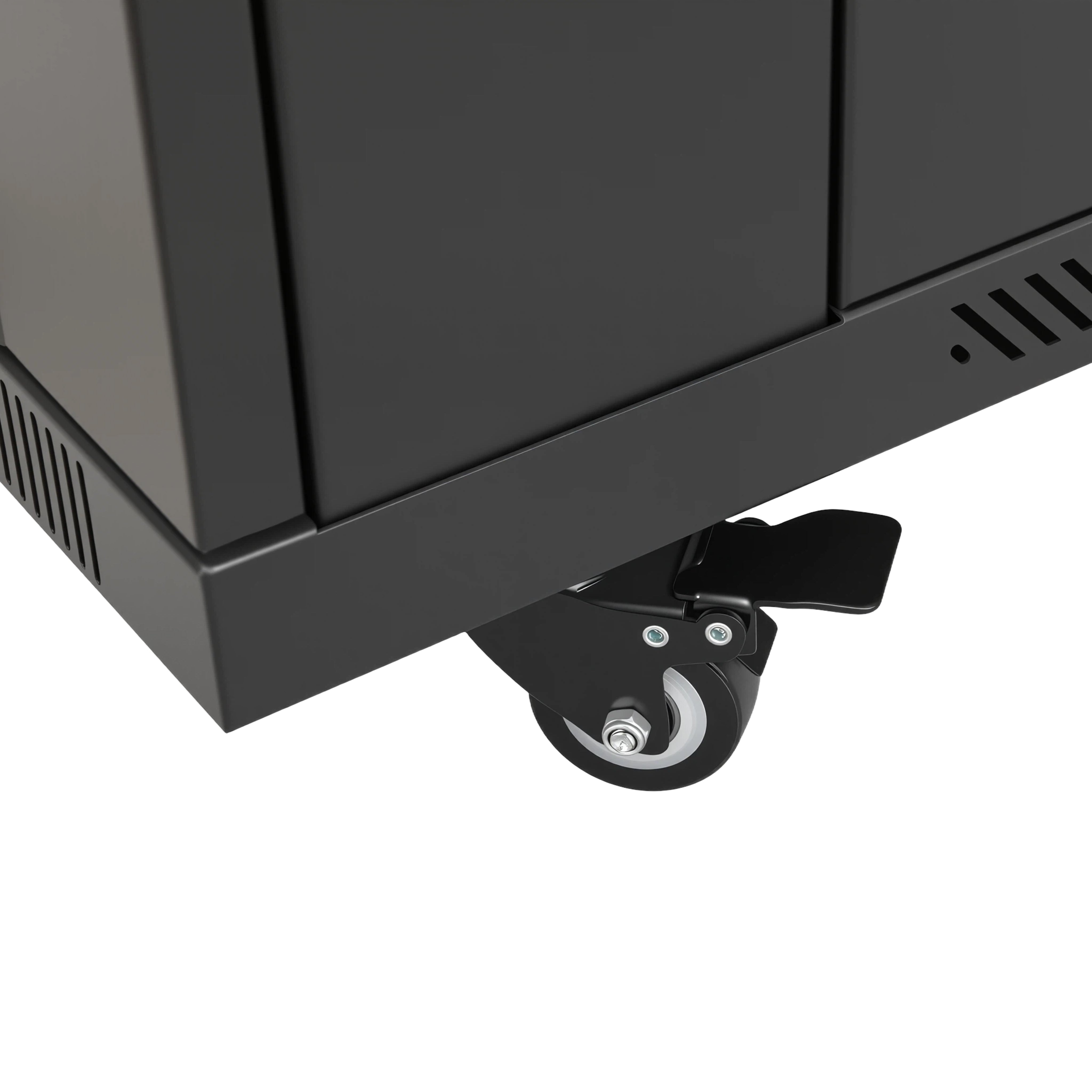

Four castor wheels and stabilising feet

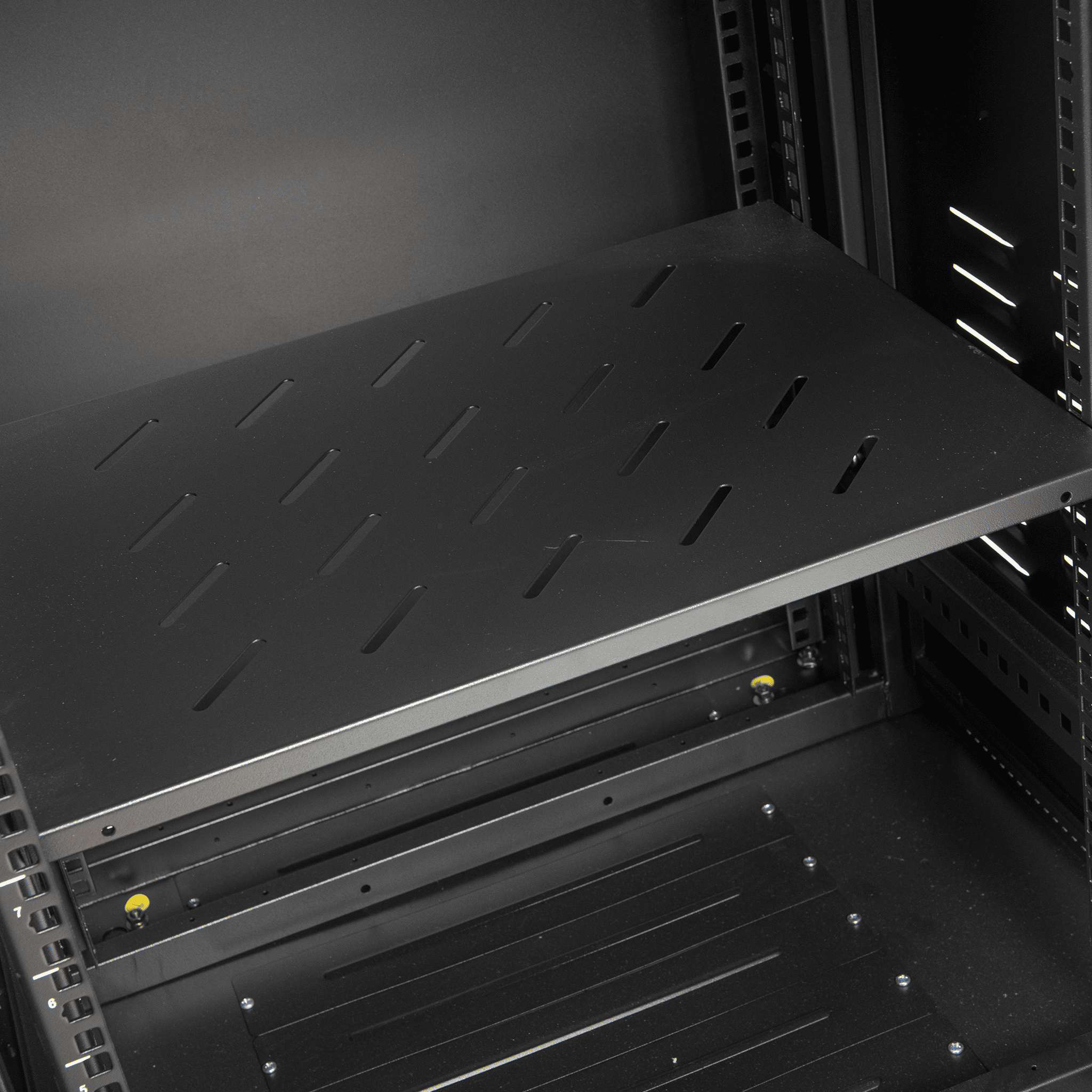

Two adjustable internal mounting shelves

1RU 8-outlet Power Distribution Unit (PDU)

20 cage nuts and bolts for equipment installation

Keys for front and rear doors, plus side panel locks

Ideal Applications
IT infrastructure and networking

Telecommunications systems (PABX, phone servers)

Audio-visual equipment, DVRs, streaming servers

Security, access control, and CCTV systems

Patch panels, UPS units, and industrial control systems

This integrated package offers a complete, future-ready rack solution, combining secure storage, advanced airflow management, and intelligent cooling to protect and optimise your critical equipment.

With a 500kg load rating and 1000mm of internal depth, it takes standard 19-inch equipment from most manufacturers.

Technical Specifications

• Dimensions 1000mm (D) x 1166mm (H) x 600mm (W)
• Rack Units 22RU
• Load Rating Up to 500kg
• Material Heavy-duty steel
• Finish Black powder-coated
• Cooling Ventilated panels, top fan tray, and temperature-controlled fan unit
• Installation Free-standing
• Warranty 2 years
