2.7m x 6.0m x 0.6m Heavy Duty Welded Steel Shelving

2.7m x 6.0m x 0.6m Heavy Duty Welded Steel Shelving

Overview

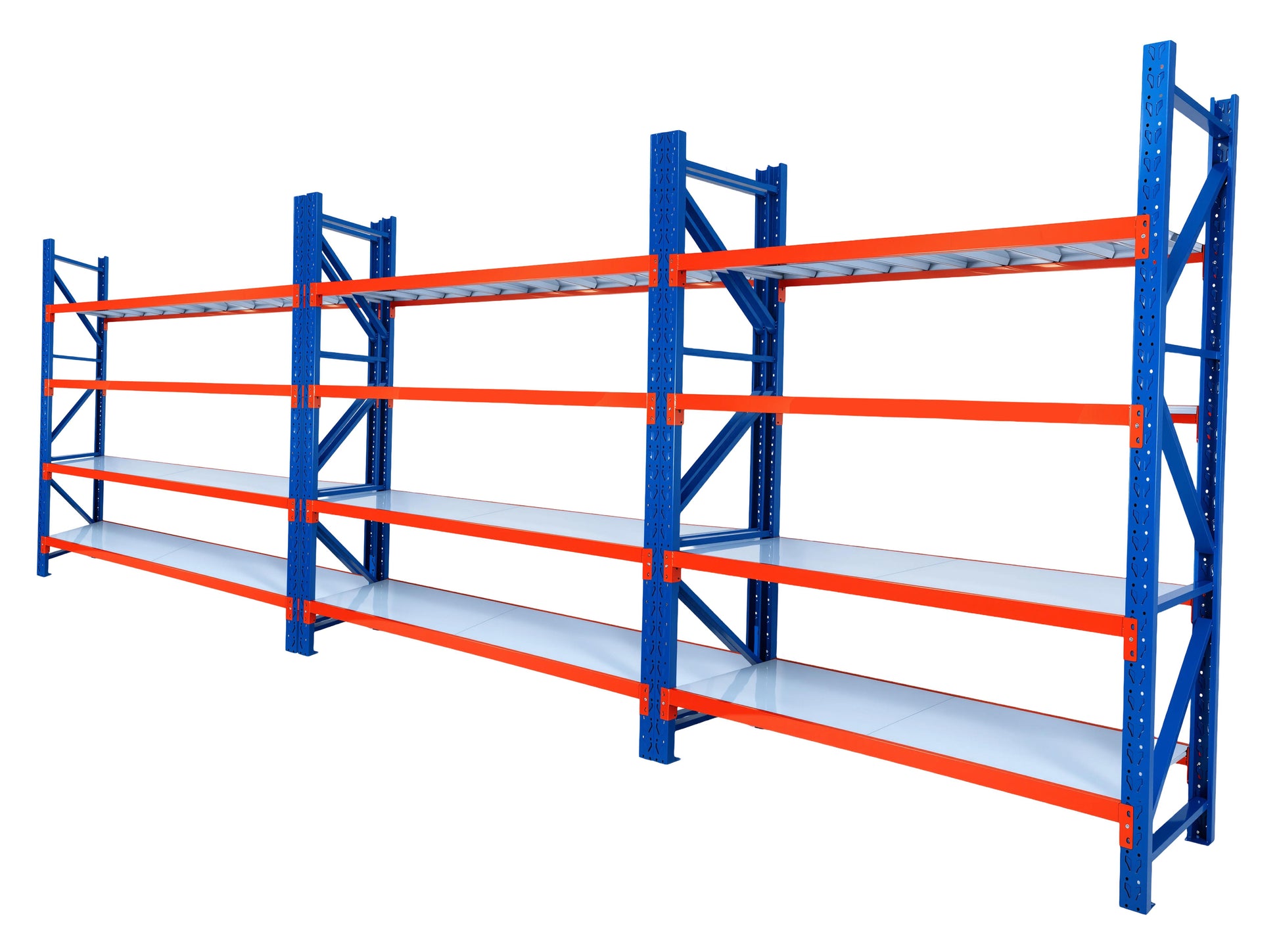

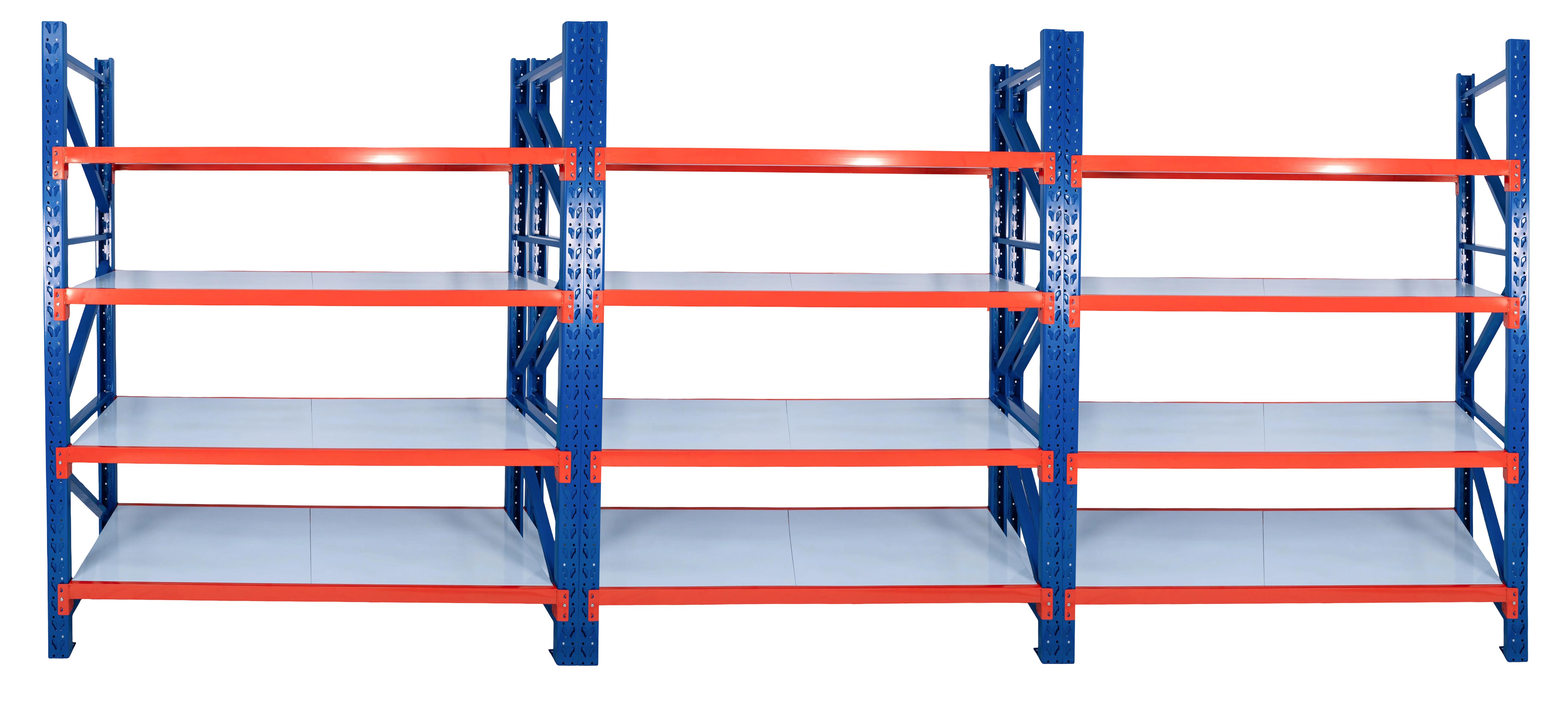

The Best World 2.7 m × 6.0 m × 0.6 m Heavy-Duty Welded Steel Long-Span Shelving is a robust, high-capacity storage solution engineered for demanding warehouse, industrial, and workshop environments. This comprehensive long-span shelving system is comprised of three integrated units: a base 2.7 m × 2.0 m × 0.6 m Heavy-Duty Welded Steel Shelving unit and 2 x 2.7 m × 2.0 m × 0.6 m Heavy-Duty Welded Steel Shelving Add-Ons, seamlessly combined to create an extended 6.0 m length storage bay. Supplied as a complete kit, the system includes 4 × 2.7 m Best World heavy-duty 40 × 80 mm profile upright frame posts that are factory-welded from heavy gauge steel into continuously welded columns, delivering superior rigidity and exceptional load-bearing capacity across the extended span. The kit also contains 24 heavy-duty cross bar beams and 24 metal shelf inserts, all finished in contrasting powder coats—blue uprights, orange cross bars, and white shelf inserts to resist corrosion and everyday wear. The welded construction of the uprights reduces flex and improves stability, allowing beams to span greater distances and maximise usable shelf space while maintaining a stable, integrated unit suitable for heavy-duty storage, organisation, equipment display, and general shelving applications.

Engineered for heavy-duty storage applications, the long-span shelving system offers a total weight-bearing capacity of 2,400 kg across three 2.0 m bays (800 kg per bay), with 200 kg per level across four usable shelf levels per bay, making it ideal for medium to heavy-weight items, machinery parts, industrial equipment, tools, and bulk storage. The modular design of this long-span shelving system allows for exceptional flexibility and scalability. The base unit and add-on components integrate seamlessly to create the 6.0 m configuration, and additional Best World Heavy-Duty Welded Steel Shelving Add-Ons can be attached to extend the length further, creating customised storage configurations tailored to specific warehouse and industrial requirements.

The 40 mm × 80 mm upright profiles feature formed steel columns with welded gussets and reinforcements at key stress points, complemented by heavy-duty base plates for secure floor anchoring. The metal shelf inserts feature welded ribs on the underside for enhanced stiffness and superior load distribution, preventing sagging under heavy loads across the extended span. The cross bar beams seat securely into the upright slots, forming a rigid, reinforced framework with continuous welds and integrated bracing that minimise movement and increase lateral stability compared with bolt-together alternatives. This design is well-suited to repeated loading and unloading cycles with heavier stored items, while the contrasting powder-coated finishes provide superior protection against wear and corrosion in demanding industrial environments.

Assembly requires basic tools and straightforward on-site preparation. Begin by positioning the base unit, then attach the add-on units by engaging the cross bar beam ends into the upright post slots, aligning all frames carefully and ensuring the base plates are properly anchored to the floor per site requirements. Place the metal shelf inserts into the beam channels, ensuring each insert sits evenly and is fully supported across the entire 6.0 m length. Secure all connections with the recommended pins, bolts, nuts, or fasteners and check all connections thoroughly for security before use. For safe, long-term performance in heavy-duty applications, regularly inspect the shelving system for loose fixings, surface damage, corrosion, or any compromised components, and replace parts promptly if needed. Use only Best World compatible beams and shelf inserts to maintain structural integrity throughout the extended span. For additional information, consult Best World's product documentation or contact their support team.

Key Features

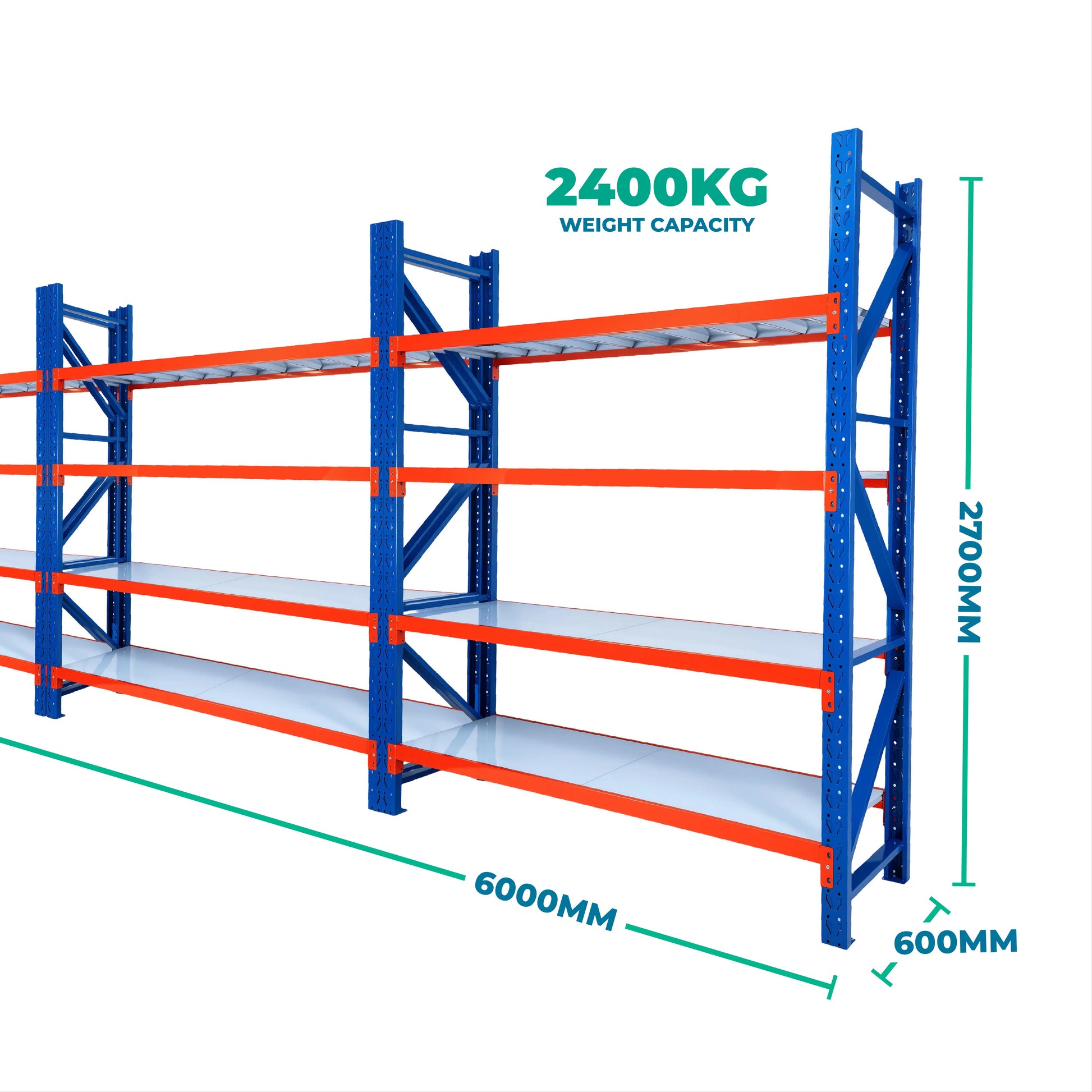

• Heavy-Duty Welded Steel Shelving: 2.7 m (H) × 6.0 m (L) × 0.6 m (D)
• 3 x 2.0 m (L) bays with four (4) usable levels each
• 2400 kg (200 kg per level per 2.0 m bay) evenly distributed weight-bearing capacity
• Factory-welded heavy-gauge steel construction: 40 × 80 mm upright frame posts with continuously welded columns for superior rigidity and stability
• Welded gussets and reinforcements at key stress points for enhanced durability
• Metal shelf inserts with welded ribs on the underside for added stiffness and superior load distribution, preventing sagging under heavy loads
• Colour-coded powder-coated finishes to resist corrosion and wear: uprights (blue), cross bars (orange), shelf inserts (white)

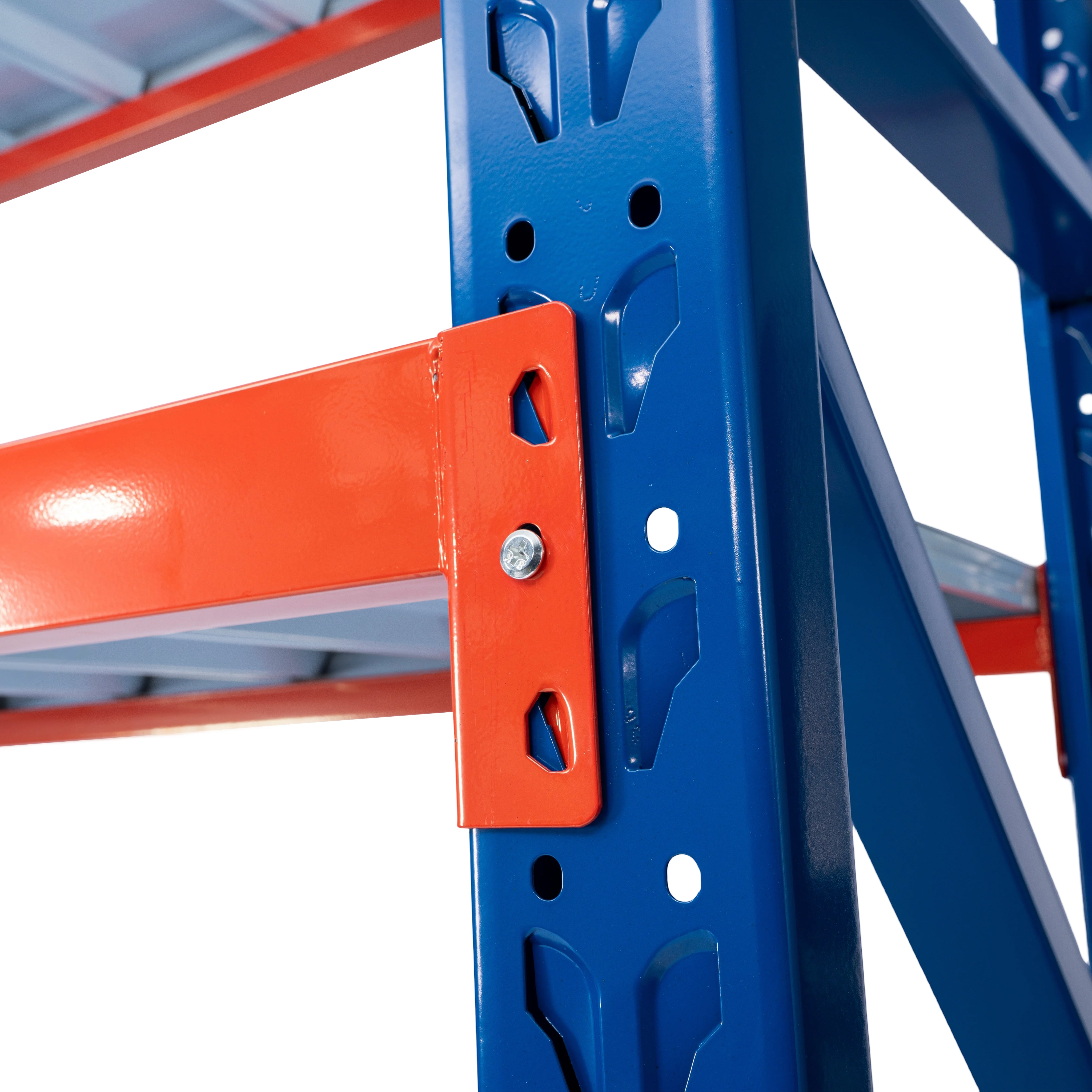

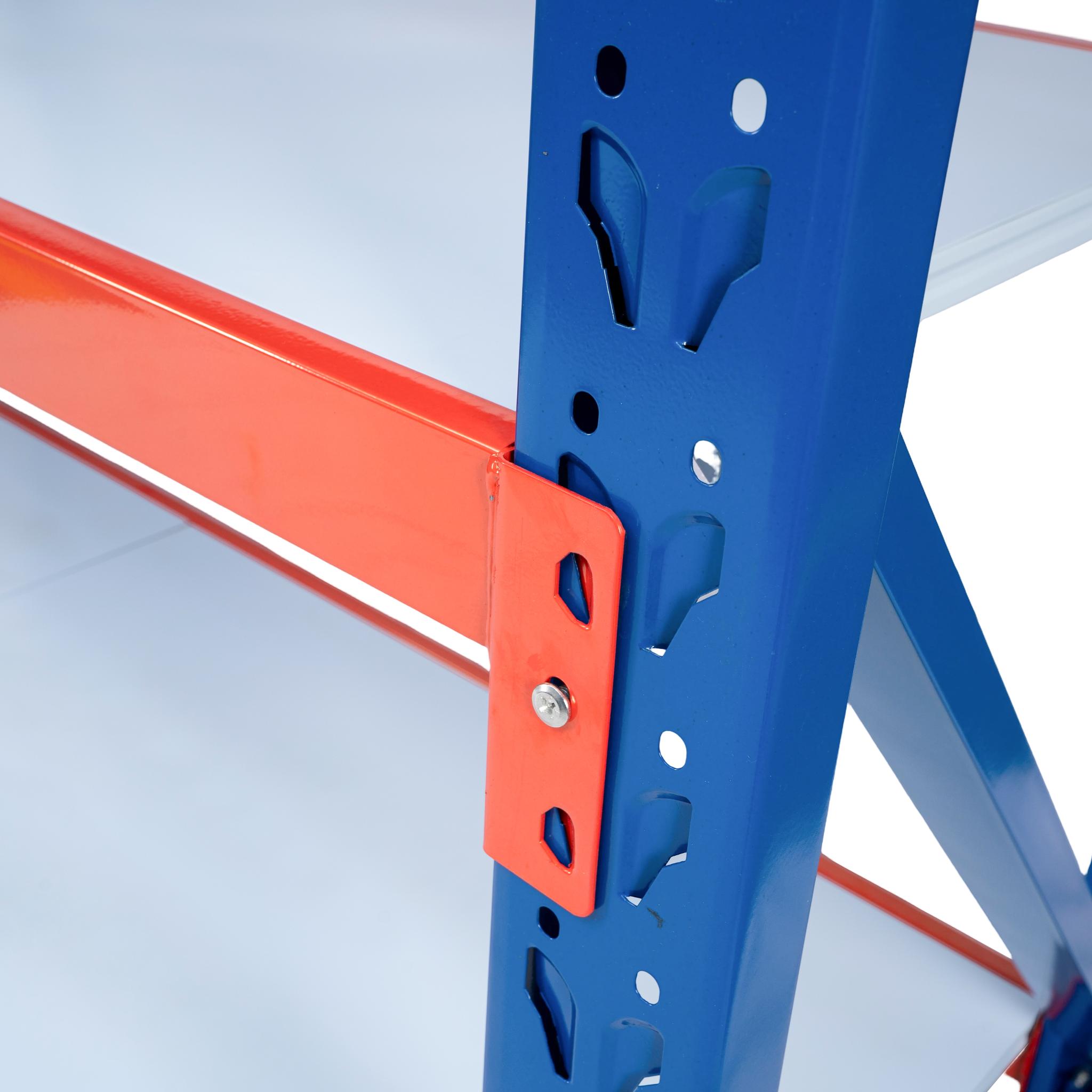

• Cross bar beams seat securely into upright posts to form a rigid, reinforced platform
• Shelf inserts sit into beam channels for a flat, stable shelf surface

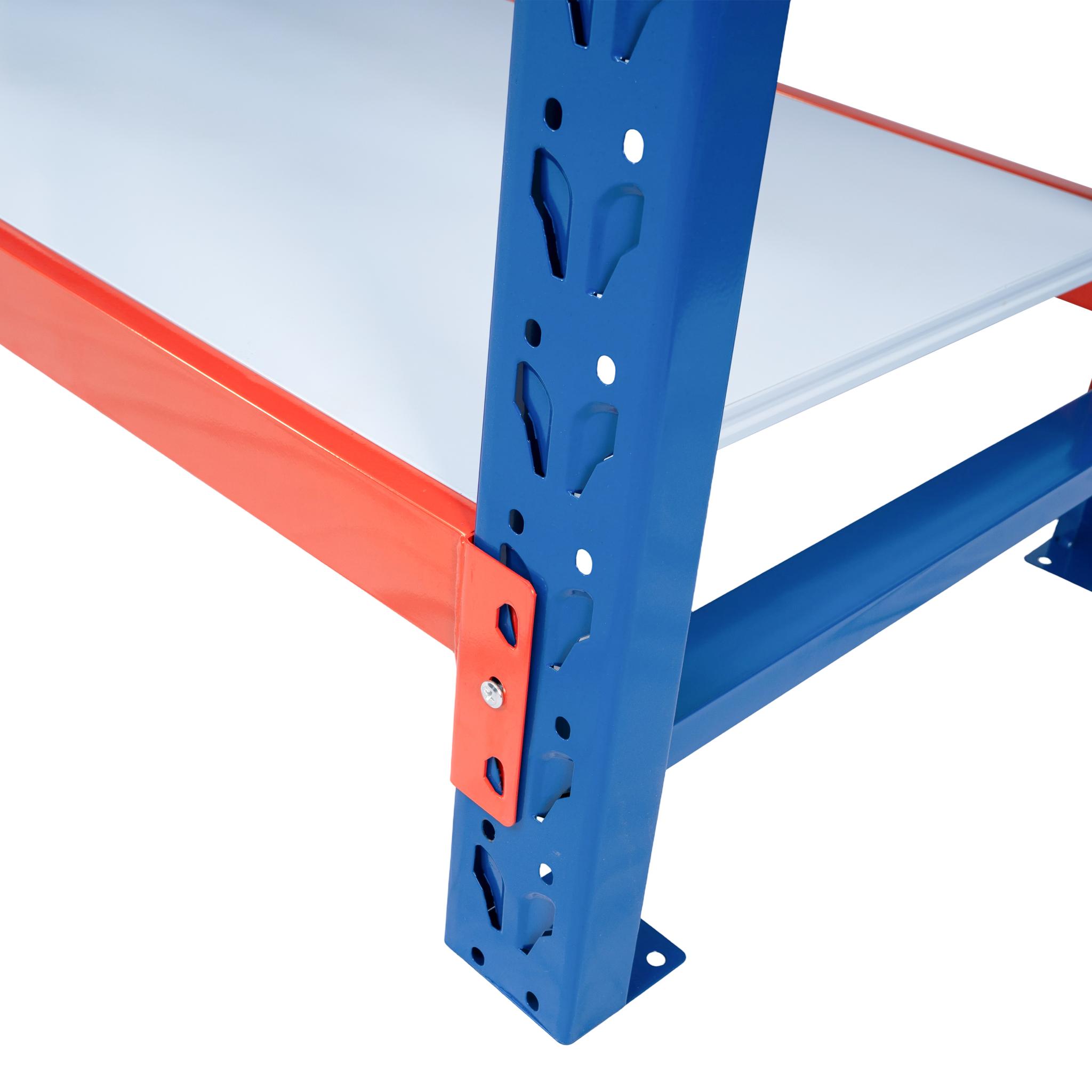

• Heavy-duty base plates for secure floor anchoring
• Continuous welds and integrated bracing for minimal movement and increased lateral stability
• Simple assembly with basic tools: engage beam ends into post slots, place inserts in channels, secure with supplied pins, bolts, nuts, or fasteners
• Ideal for warehouses, industrial facilities, workshops, and demanding storage environments
• Stand-alone or expandable using Best World Heavy-Duty Shelving Add-Ons for customised configurations
• Suitable for medium to heavy-weight items, machinery parts, industrial equipment, tools, and bulk storage
• Well-suited to repeated loading and unloading cycles
• Low maintenance: periodic inspection recommended to check fixings, surface condition, and corrosion
• Use only Best World compatible beams and shelf inserts to maintain structural integrity
• 2-year product limited replacement warranty

Components (Supplied)

• 4 × 2.7 m Best World upright frame posts (40 mm × 80 mm)
• 24 × heavy-duty cross bar beams (2.0m span)
• 24 × metal shelf inserts (1.0 m × 0.6 m)
• Fastening hardware (supplied) — pins or bolts & nuts
• Assembly instructions / installation guide
