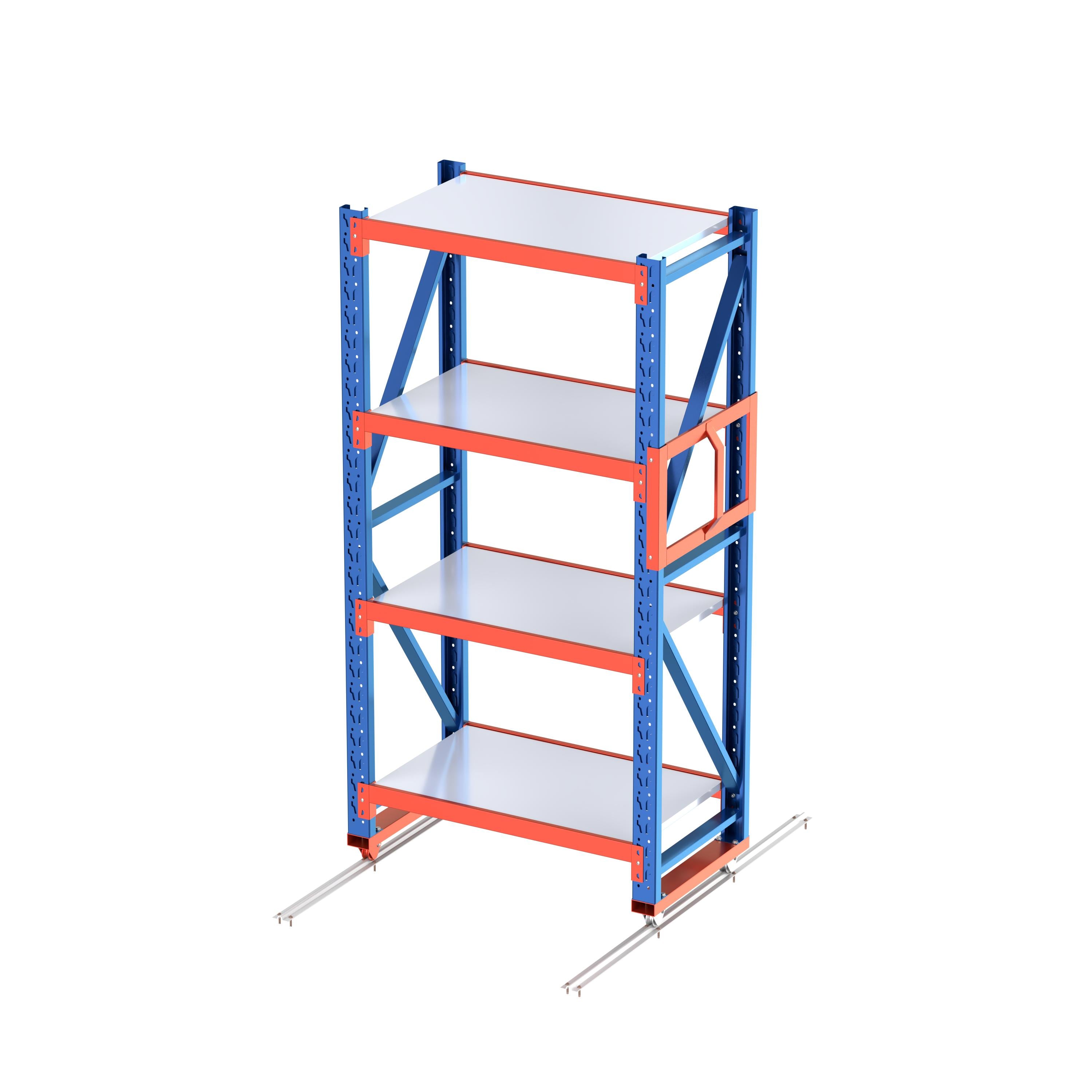

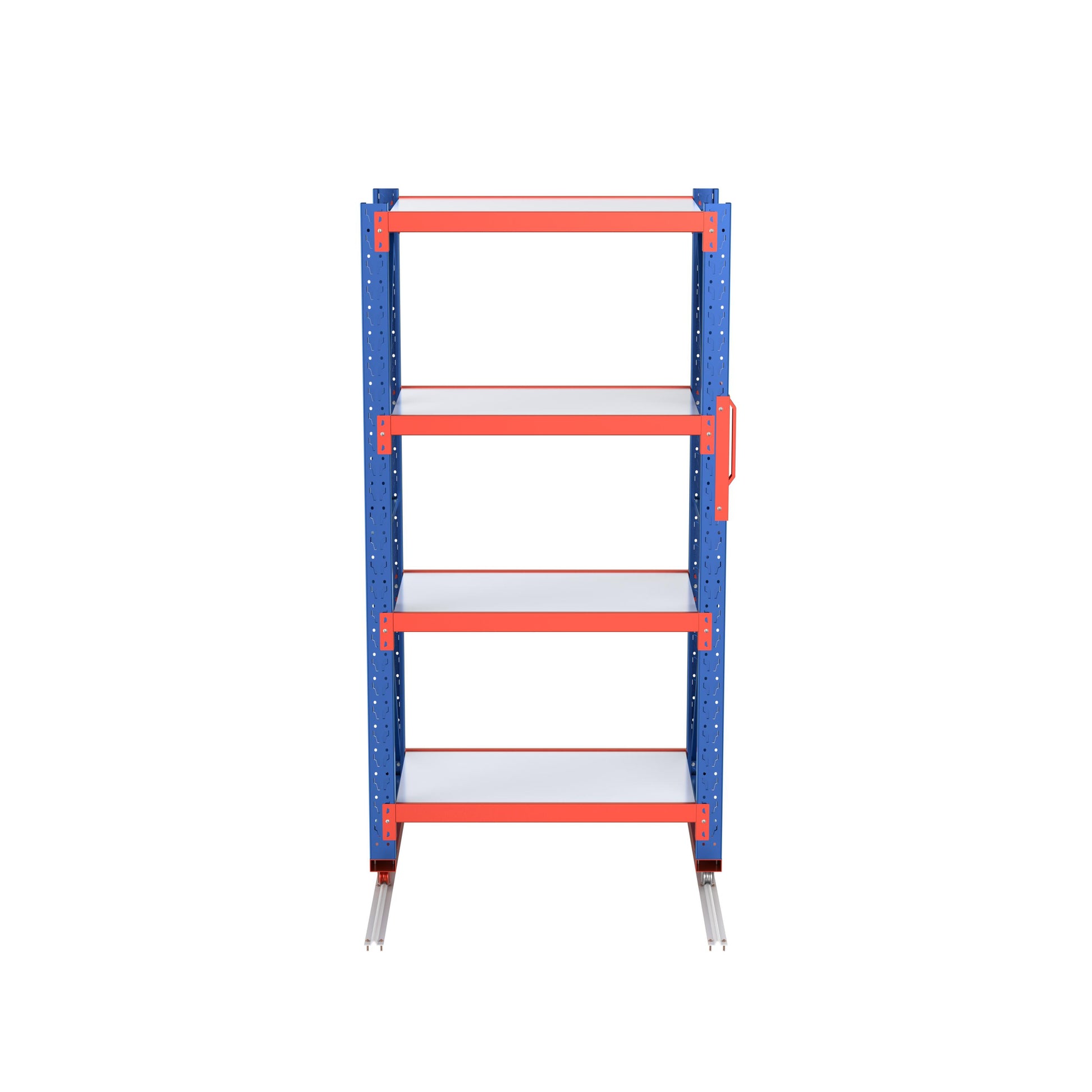

2.4m x 0.9m x 0.6m Heavy Duty Welded Steel Mobile storage Shelving

2.4m x 0.9m x 0.6m Heavy Duty Welded Steel Mobile Storage Shelving

Overview

The Best World 2.4m × 0.9m × 0.6m Heavy-Duty Welded Steel Mobile Storage Shelving is a robust, high-capacity mobile storage solution engineered as a major space-saving system for demanding warehouse, industrial, and workshop environments. This innovative system is created by combining the Best World 2.4m × 0.9m × 0.6m Heavy-Duty Welded Steel Shelving with the Mobile Storage Expansion Full Kit for 40×80 posts and the Mobile Storage Expansion Ground Track (2m). Supplied as a complete mobile system, it includes 2 × 2.4m Best World heavy-duty 40×80mm profile upright frame posts that are factory-welded from heavy gauge steel into continuously welded columns, delivering superior rigidity and exceptional load-bearing capacity. The kit also contains 8 heavy-duty cross bar beams, 4 metal shelf inserts, an orange powder-coated handle for effortless movement, and wheel-bar assemblies, all finished in contrasting powder coats—blue uprights, orange cross bars, and white shelf inserts—to resist corrosion and everyday wear. The welded construction reduces flex and improves stability, while the mobile design enables seamless movement on tracks throughout your facility, maximizing storage density without requiring permanent wall installations or major facility alterations.

Engineered for heavy-duty mobile storage applications, the shelving unit offers a total weight-bearing capacity of 800kg, with 200kg per level across four usable shelf levels, making it ideal for medium to heavy-weight items, machinery parts, industrial equipment, tools, and bulk storage. The 40mm × 80mm upright profiles feature a formed steel column with welded gussets and reinforcements at key stress points. The metal shelf inserts feature welded ribs on the underside for enhanced stiffness and superior load distribution, preventing sagging under heavy loads. The cross bar beams seat securely into the upright slots, forming a rigid, reinforced framework with continuous welds and integrated bracing that minimise movement and increase lateral stability. The wheel-bar assemblies run smoothly on the Mobile Storage Expansion Ground Track, providing stable, consistent movement and allowing the shelving to operate as a space-saving mobile system. This design is well suited to repeated loading and unloading cycles with heavier stored items, while the contrasting powder-coated finishes provide superior protection against wear and corrosion in demanding industrial environments

The mobile shelving system is ideal for use in warehouses, garages, retail backrooms, and other busy storage areas seeking to increase storage capacity and improve access without building new walls or making major facility alterations. The system can be expanded into comprehensive storage configurations using Best World Heavy-Duty Welded Steel Shelving Add-Ons, allowing seamless integration of additional bays and levels to create customised storage layouts tailored to specific warehouse and industrial requirements. The mobile design enables repositioning and relocation throughout your facility, making it a practical, cost-effective solution for boosting storage density and keeping items organised and reachable while maximising existing floor space.

Assembly requires basic tools and straightforward on-site preparation. Engage the cross bar beam ends into the upright post slots, aligning frames carefully and ensuring connections are secure. Place the metal shelf inserts into the beam channels, ensuring each insert sits evenly and is fully supported. Attach the orange powder-coated handle to the upright posts as well as the wheel-bar assemblies. Install the Mobile Storage Expansion Ground Track (2m) on the floor to provide a guided path for the wheel-bar assemblies. Secure all connections with the recommended pins, bolts, nuts, or fasteners and check all connections thoroughly for security before use. For safe, long-term performance in heavy-duty mobile applications, regularly inspect the shelving unit for loose fixings, surface damage, corrosion, or any compromised components, and replace parts promptly if needed. Use only Best World compatible beams and shelf inserts to maintain structural integrity. For additional information, consult Best World's product documentation or contact their support team.

Please note - expansion ground tracks are not included and must be purchased separately.

Key Features

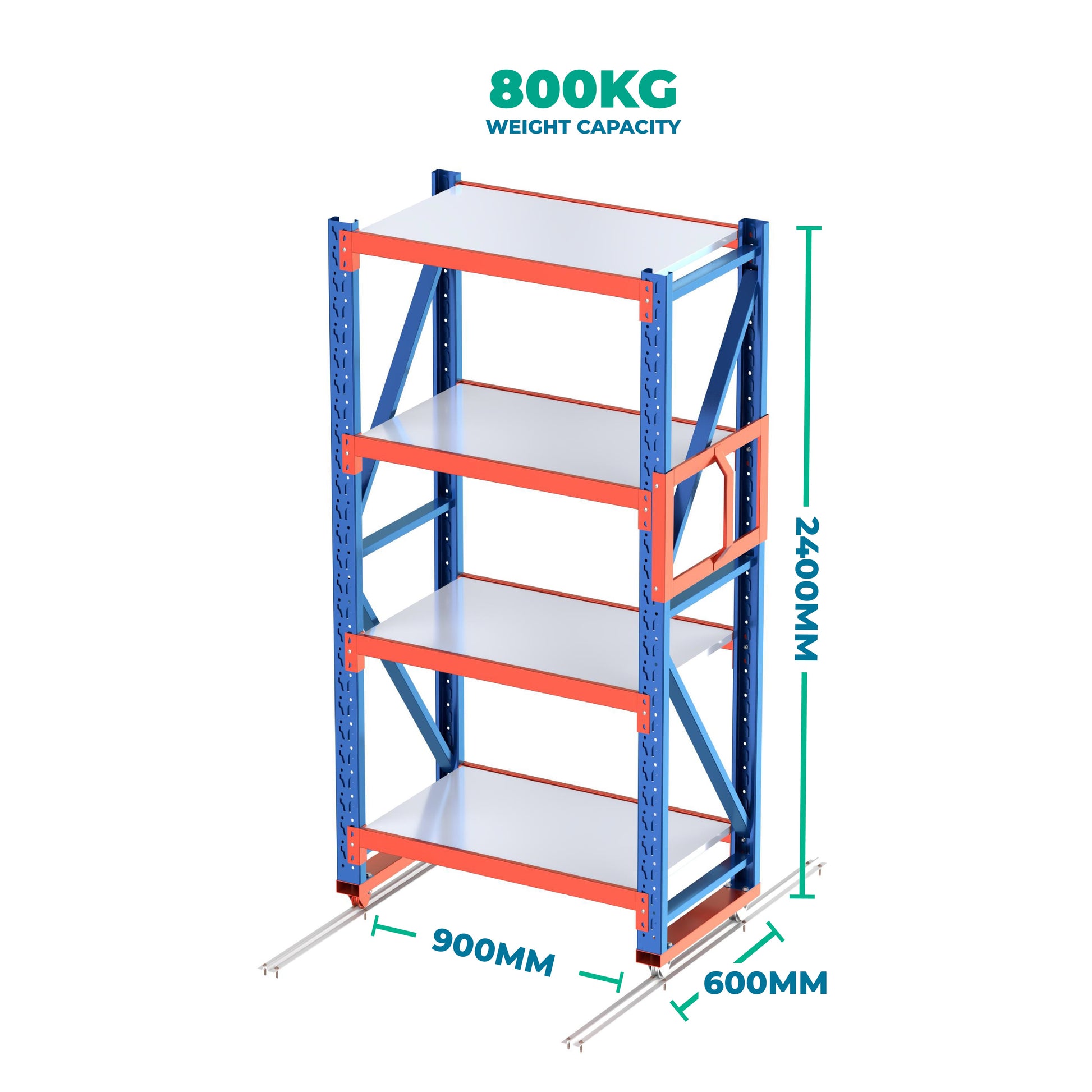

• Heavy-Duty Mobile Storage System: 2.4m (H) × 0.9m (L) × 0.6m (D) engineered as a major space-saving solution
• Complete Mobile System: Combines shelving unit with Mobile Storage Expansion Full Kit and Ground Track (2m) for seamless mobility
• Factory-welded heavy-gauge steel construction: 40 × 80 mm upright frame posts with continuously welded columns for superior rigidity and stability
• High Load Capacity: 800kg total weight-bearing capacity with 200kg per level across four usable shelf levels
• Enhanced Durability: Welded gussets and reinforcements at key stress points for exceptional strength
• Continuous welds and integrated bracing for minimal movement and increased lateral stability
• 8 Heavy-Duty Cross Bar Beams: Seat securely into upright slots forming a rigid, reinforced framework
• 4 Metal Shelf Inserts: Feature welded ribs on underside for added stiffness and superior load distribution, preventing sagging
• Smooth Mobile Operation: Wheel-bar assemblies run on Mobile Storage Expansion Ground Track for stable, consistent movement
• Powder-Coated Finishes: Blue uprights, orange cross bars, white shelf inserts resist corrosion and wear
• Orange Powder-Coated Handle: Enables comfortable, effortless movement on ground tracks
• Space-Saving Design: Enables repositioning and relocation without disassembly, maximizing storage density
• Heavy-duty base plates for secure wheel-bar assemblies
• No Permanent Installation Required: Increases storage capacity without building walls or major facility alterations

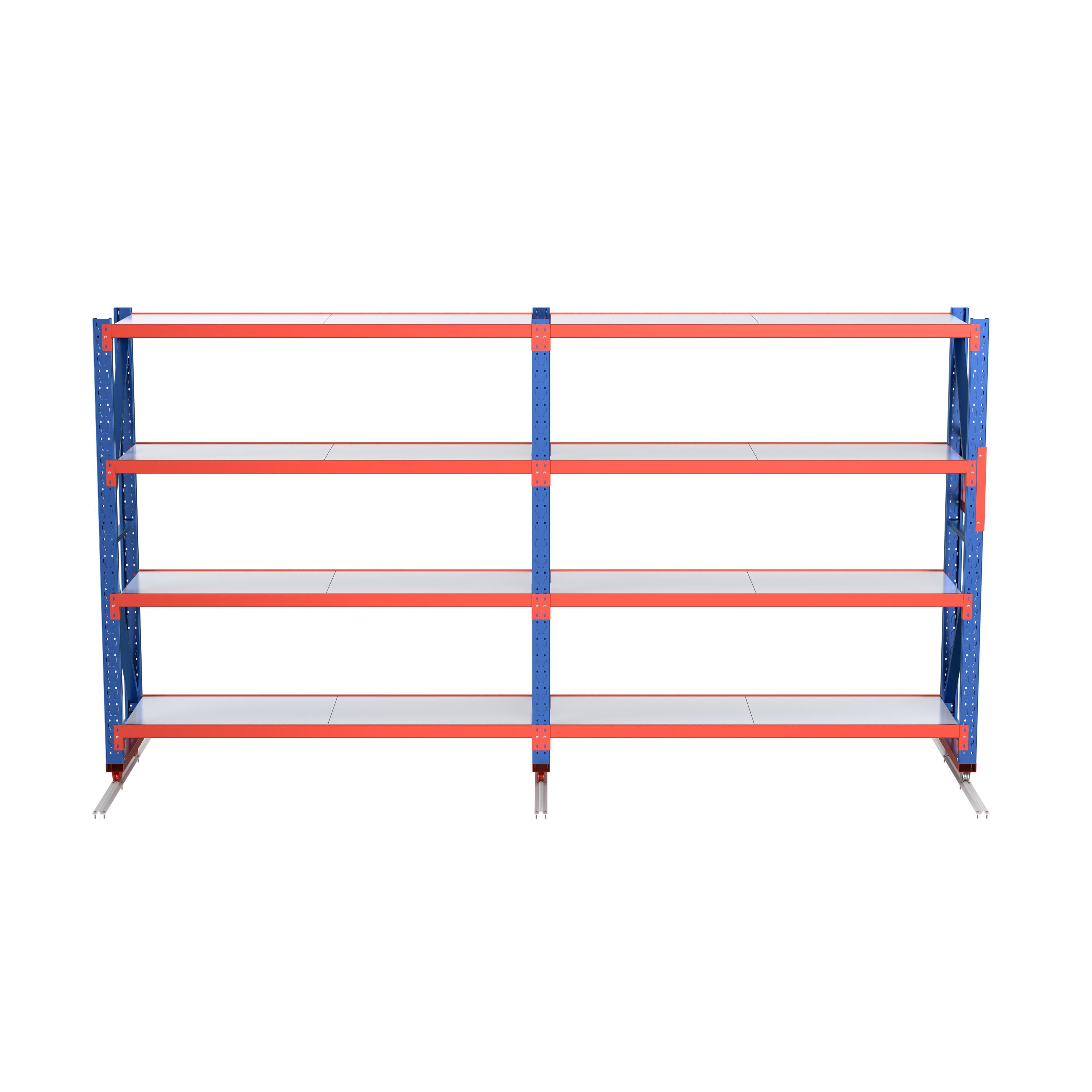

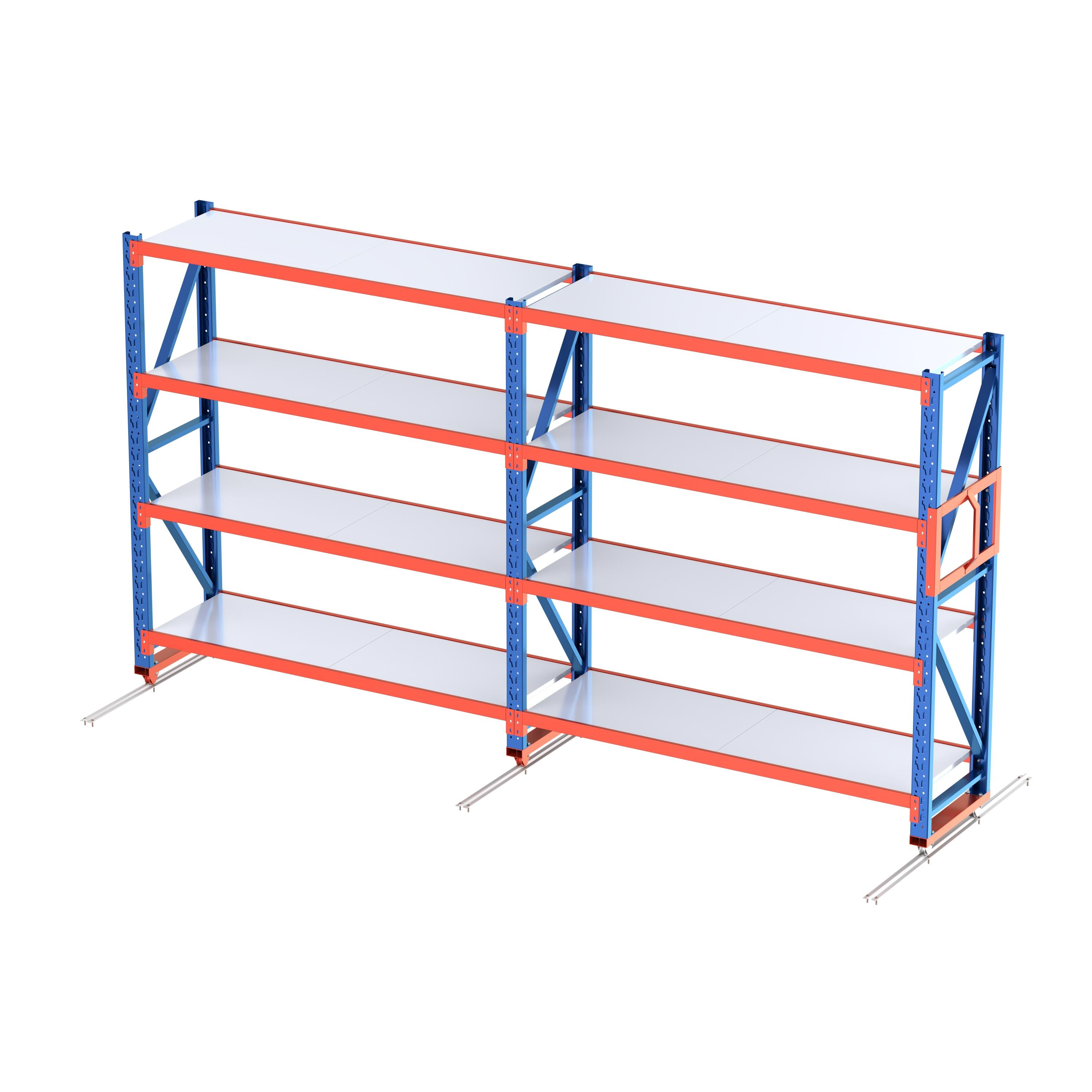

• Expandable Configuration: Compatible with Best World Heavy-Duty Welded Steel Shelving Add-Ons for customised layouts
• Suitable for Heavy-Duty Applications: Ideal for medium to heavy-weight items, machinery parts, industrial equipment, tools, and bulk storage
• Handles Repeated Cycles: Well-suited to repeated loading and unloading cycles
• Simple Assembly: Requires basic tools and straightforward on-site preparation
• Low Maintenance: Regular inspection recommended for loose fixings, surface damage, and corrosion
• Compatible Components Only: Use only Best World compatible beams and shelf inserts to maintain structural integrity
• Ideal Applications: Perfect for warehouses, garages, retail backrooms, and other busy storage areas
• 2-year product limited replacement warranty

Components (Supplied)

• 2 × 2.4 m Best World upright frame posts (40 mm × 80 mm)
• 8 × heavy-duty cross bar beams (0.9 m span)
• 4 × metal shelf inserts (0.9 m × 0.6 m)

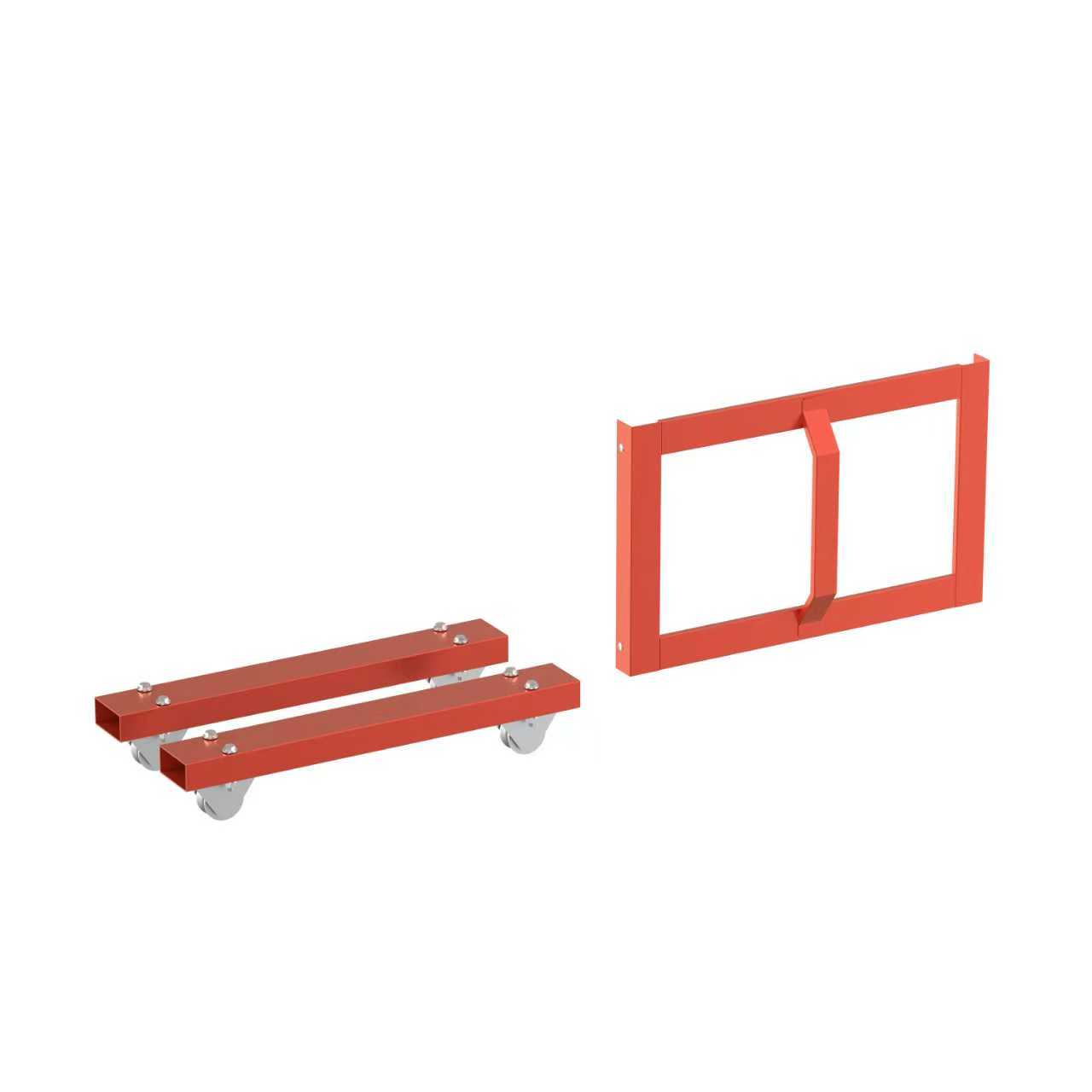

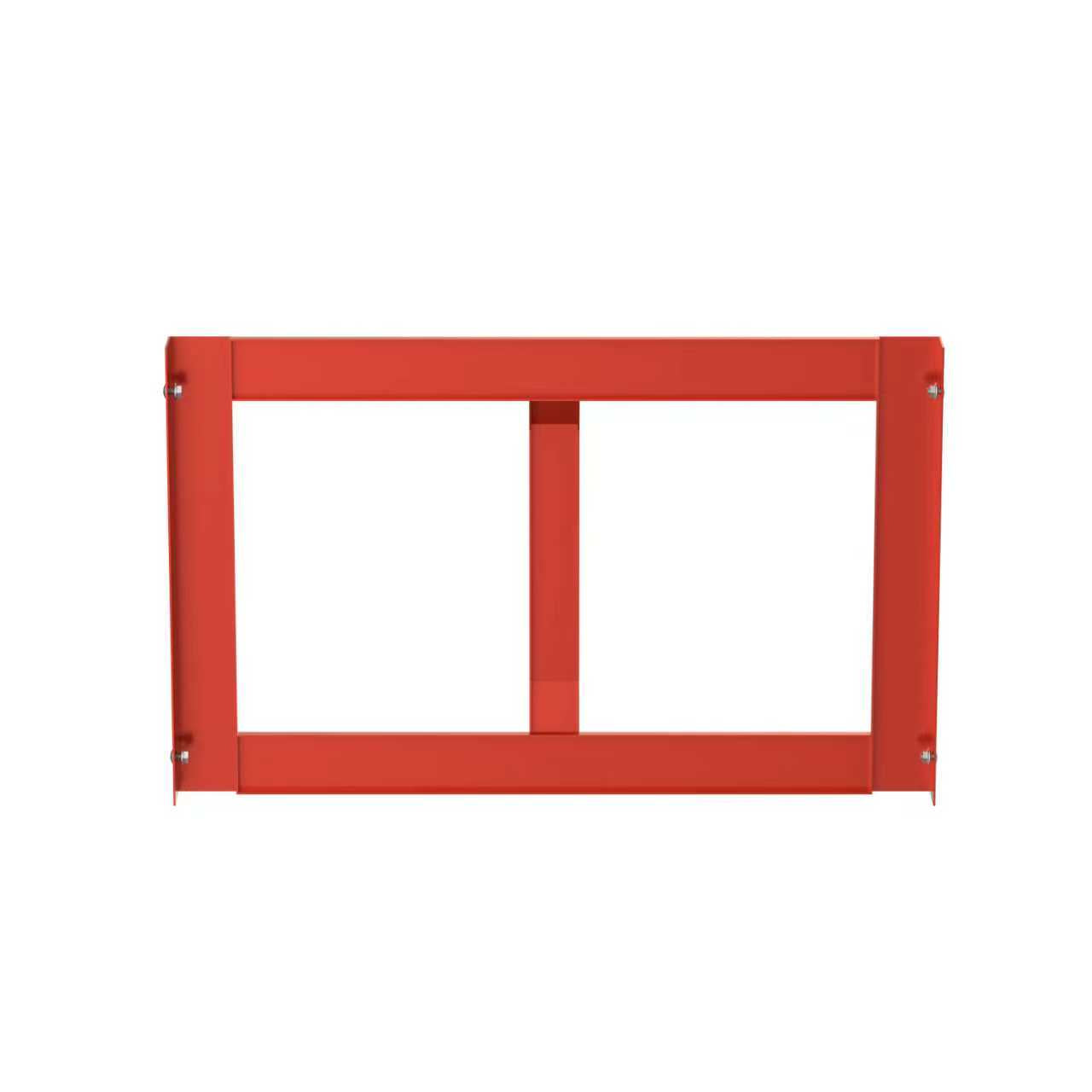

• 1 x orange powder-coated handle

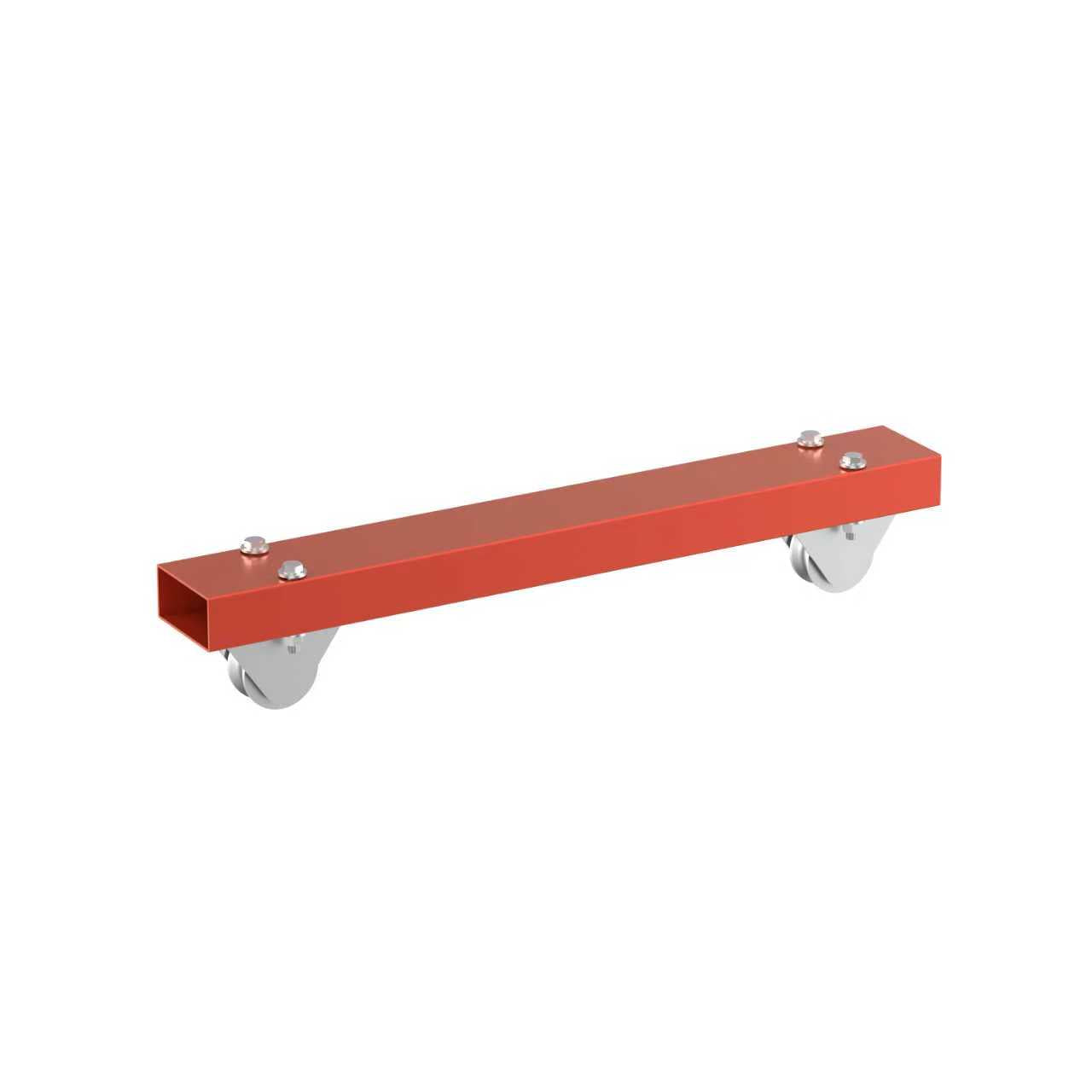

• 2 x wheel-bar assemblies with 2 wheels each
• Fastening hardware (supplied) — pins or bolts & nuts
• Assembly instructions / installation guide
